Water Quality Sensor In Stock

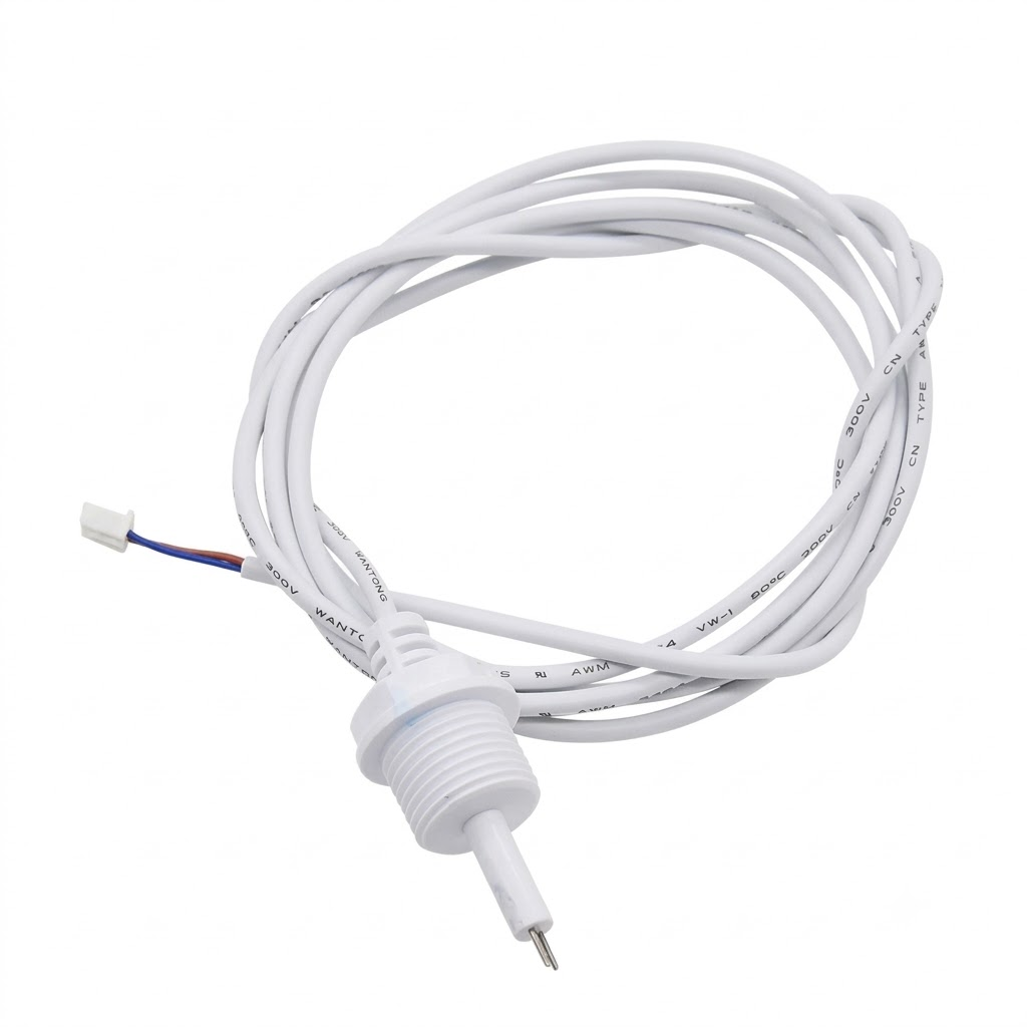

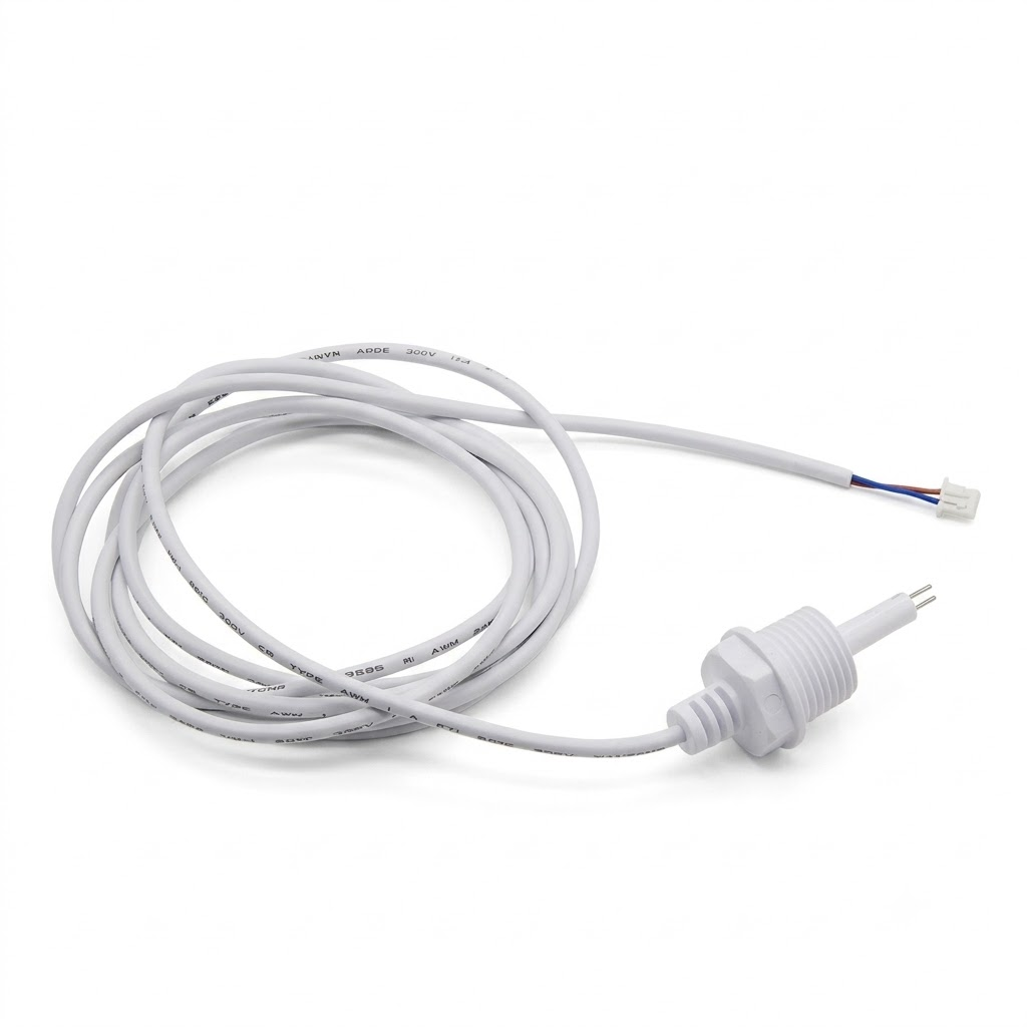

TDS Probe (2m)

Type: TDS Probe | Mount: G1/2-inch male thread fitting

₹ 000.00

* Contact us for bulk pricing.

Key Features

High Accuracy ±2% precision from 0 to 3000 PPM for reliable water quality testing.

Durable & Waterproof Wear-resistant body featuring a secure threaded mount for high-pressure installation.

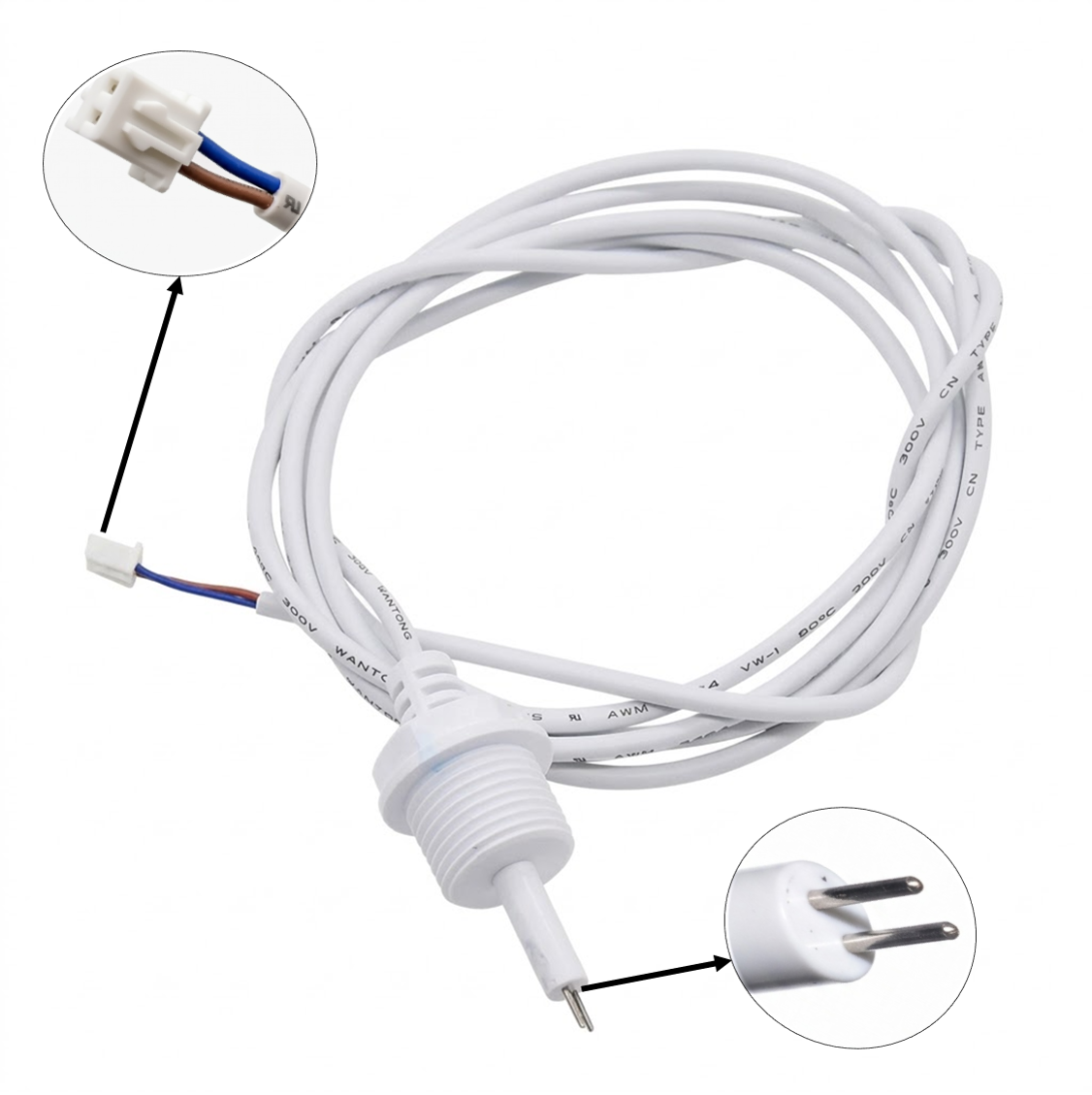

Plug & Play G1/2-inch male thread fitting and a standard 2-pin JST connector for easy integration.

Long Lifespan Ultra-low current draw (≤ 5 µA) prevents electrolysis and protects electrodes.

Specifications

Model

TDS Probe

Measurement Range

0 – 3000 PPM

Measurement Accuracy

± 2%

Operating Voltage

3.3V to 5.5V DC (Recommended < 5V)

Output Voltage

0 to 2.3V analog

Recommended Working Current

≤ 5 µA

Operating Water Pressure

0.1 to 0.4 MPa (approx. 14.5 to 58 PSI)

Operating Temperature

< 70°C

Insulation Resistance

≥ 50 MΩ (dry)

Body Material

ABS / PE (White)

Mounting / Fitting

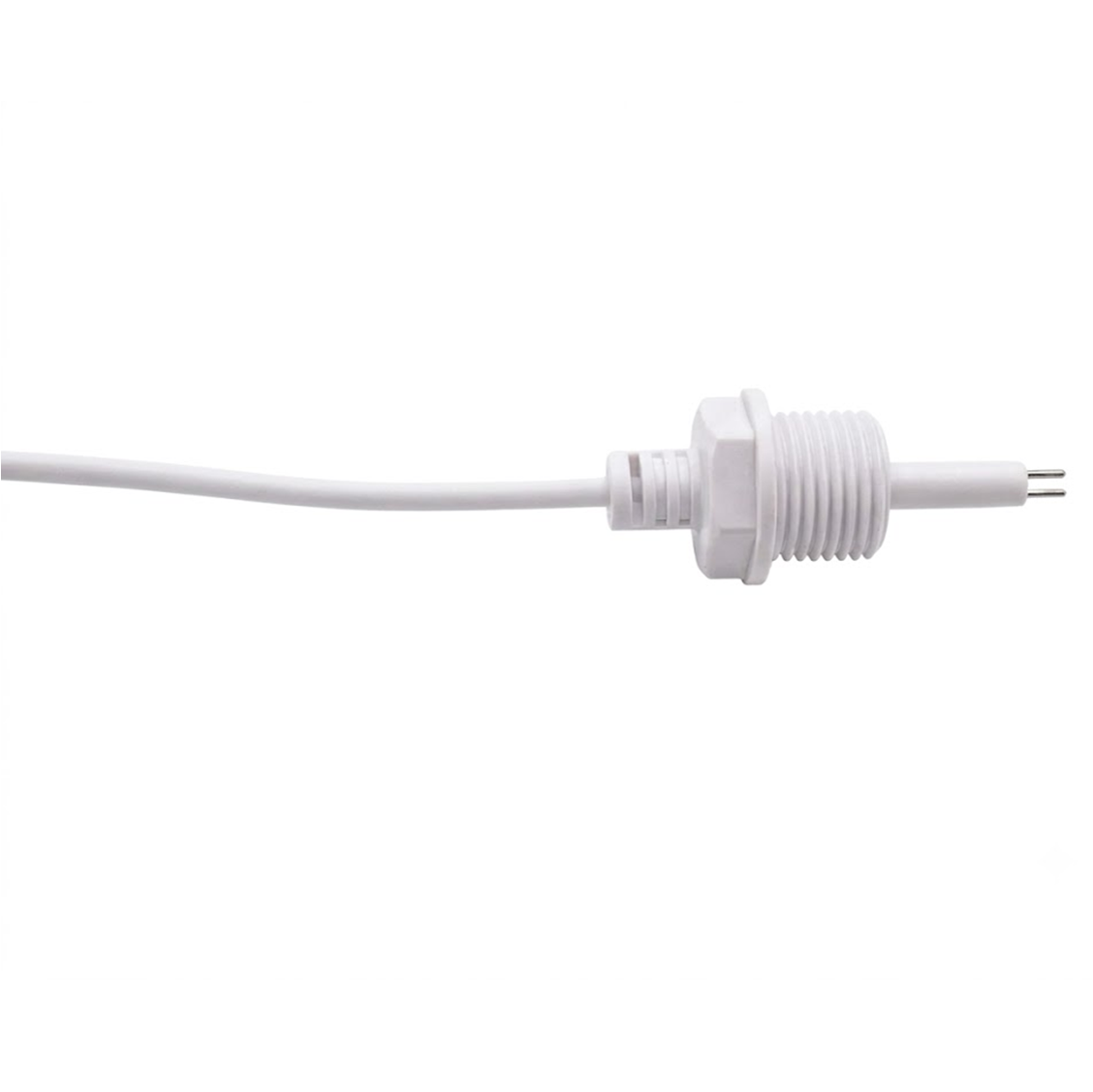

Threaded Screw-in Fitting(G 1/2")

Wire Length & Connector

2.0 Meters (200 cm) | 2-Pin JST / XH2.54 Terminal

Wiring Colors

Blue: Probe Terminal 1
Brown: Probe Terminal 2
(Note: TDS probes are non-polarized)
