Sensor In Stock

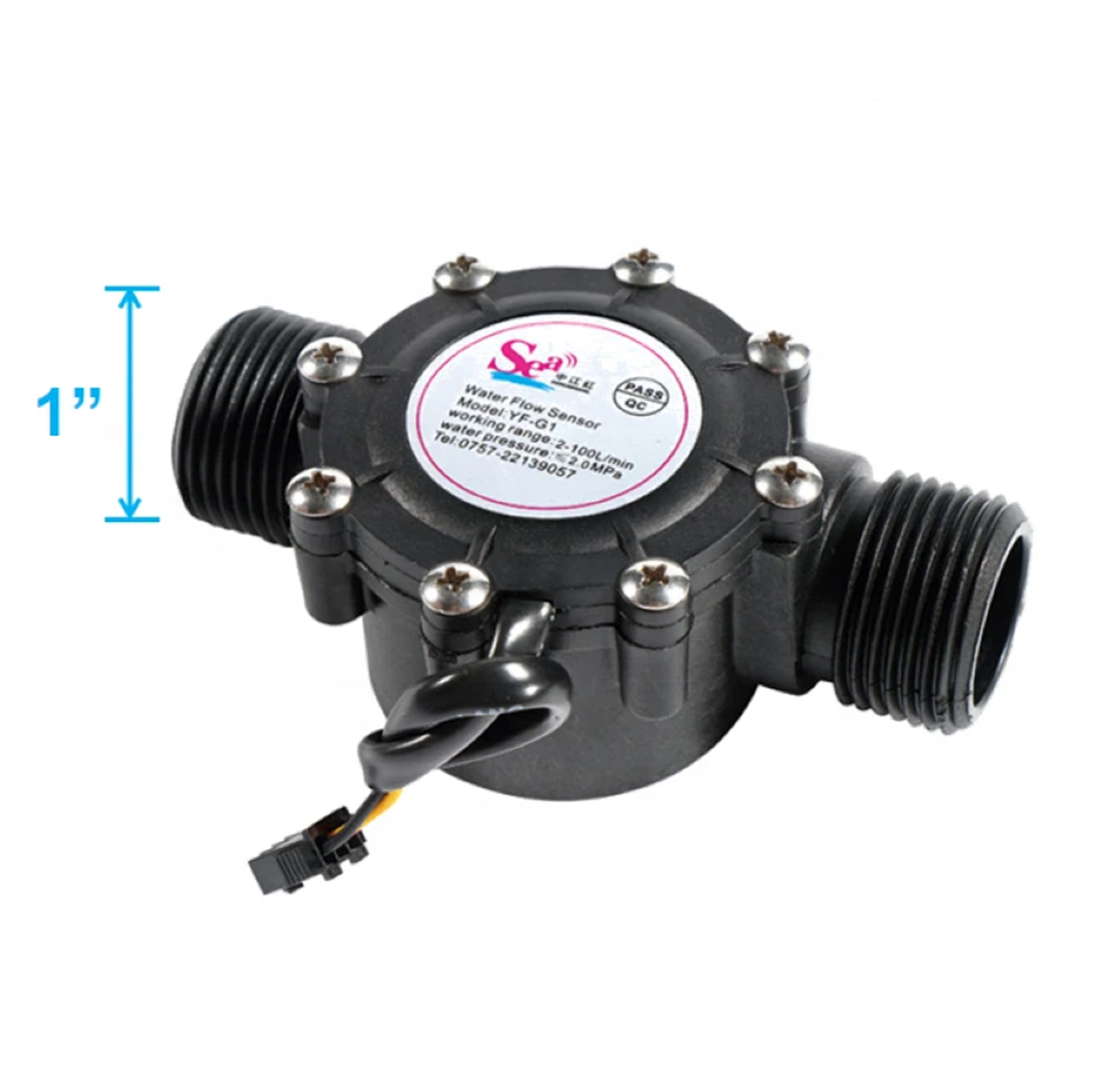

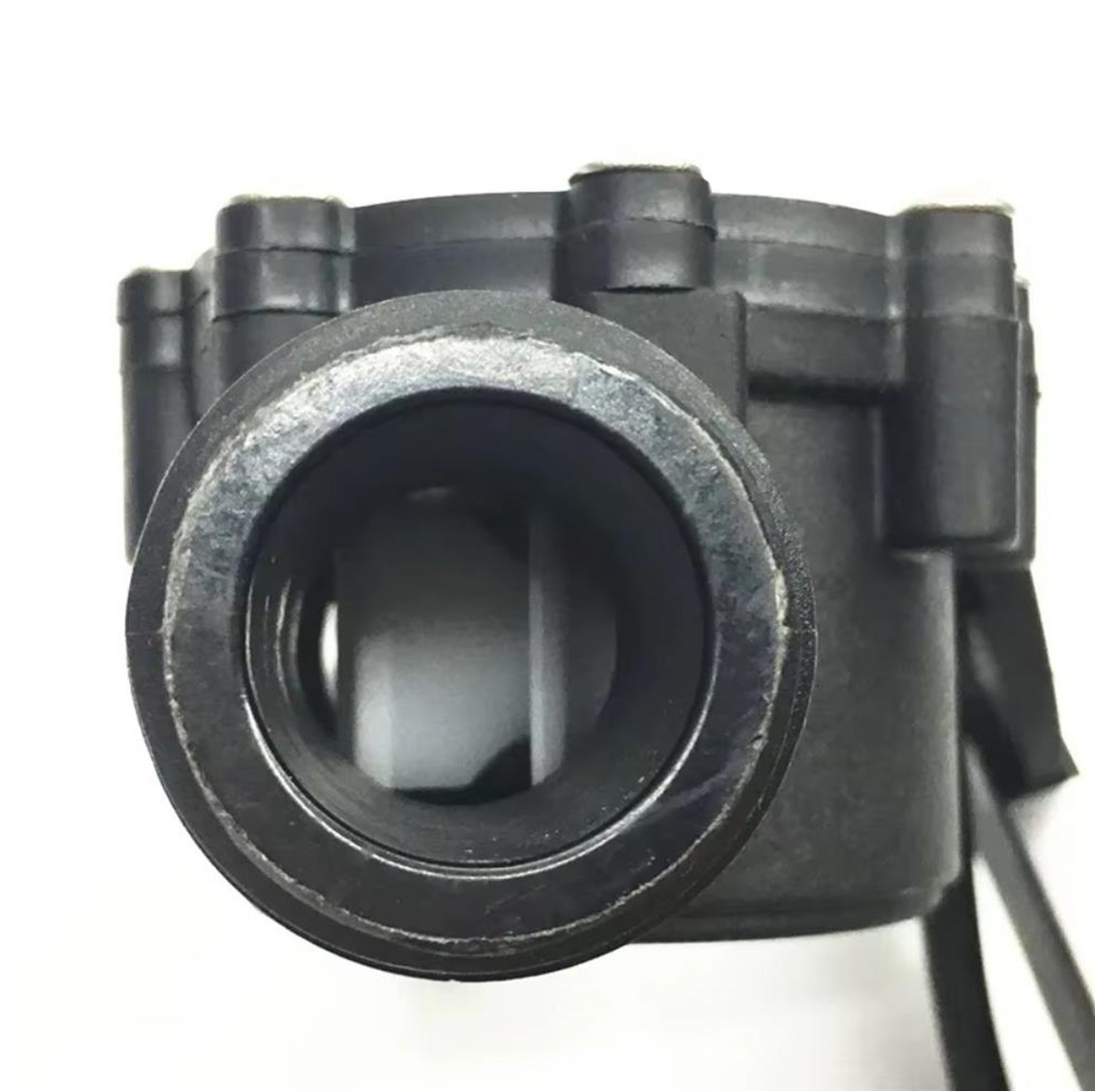

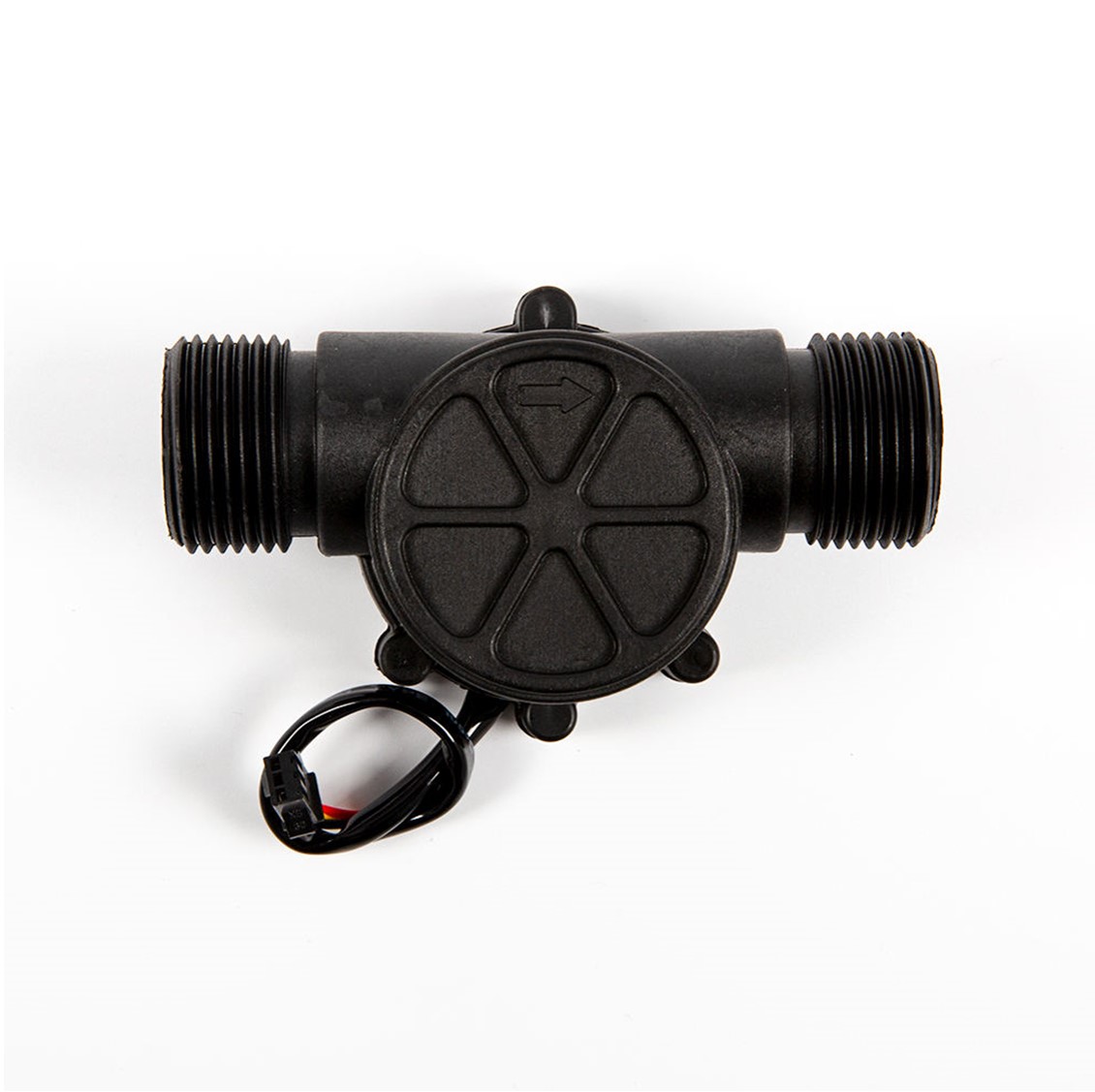

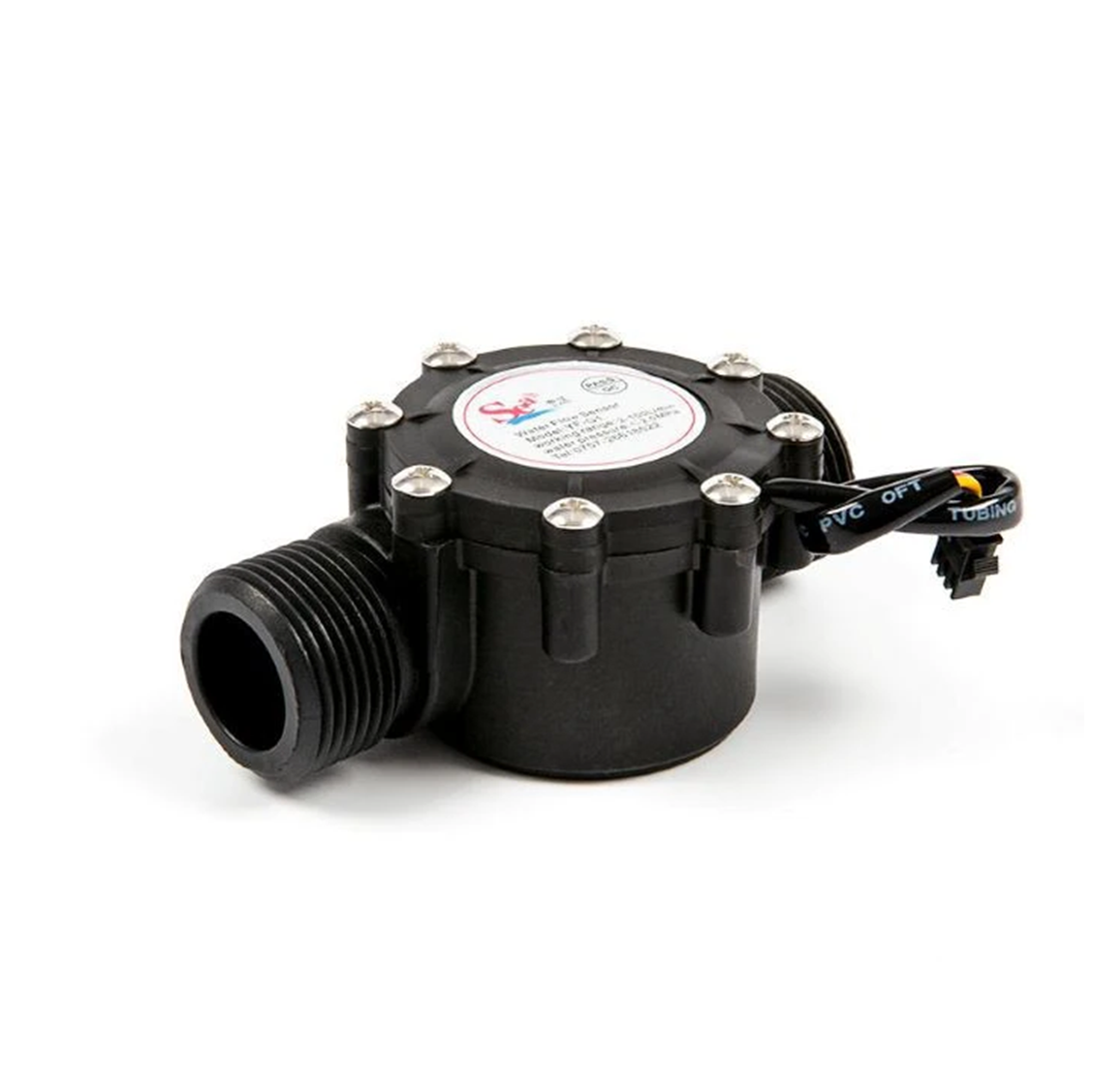

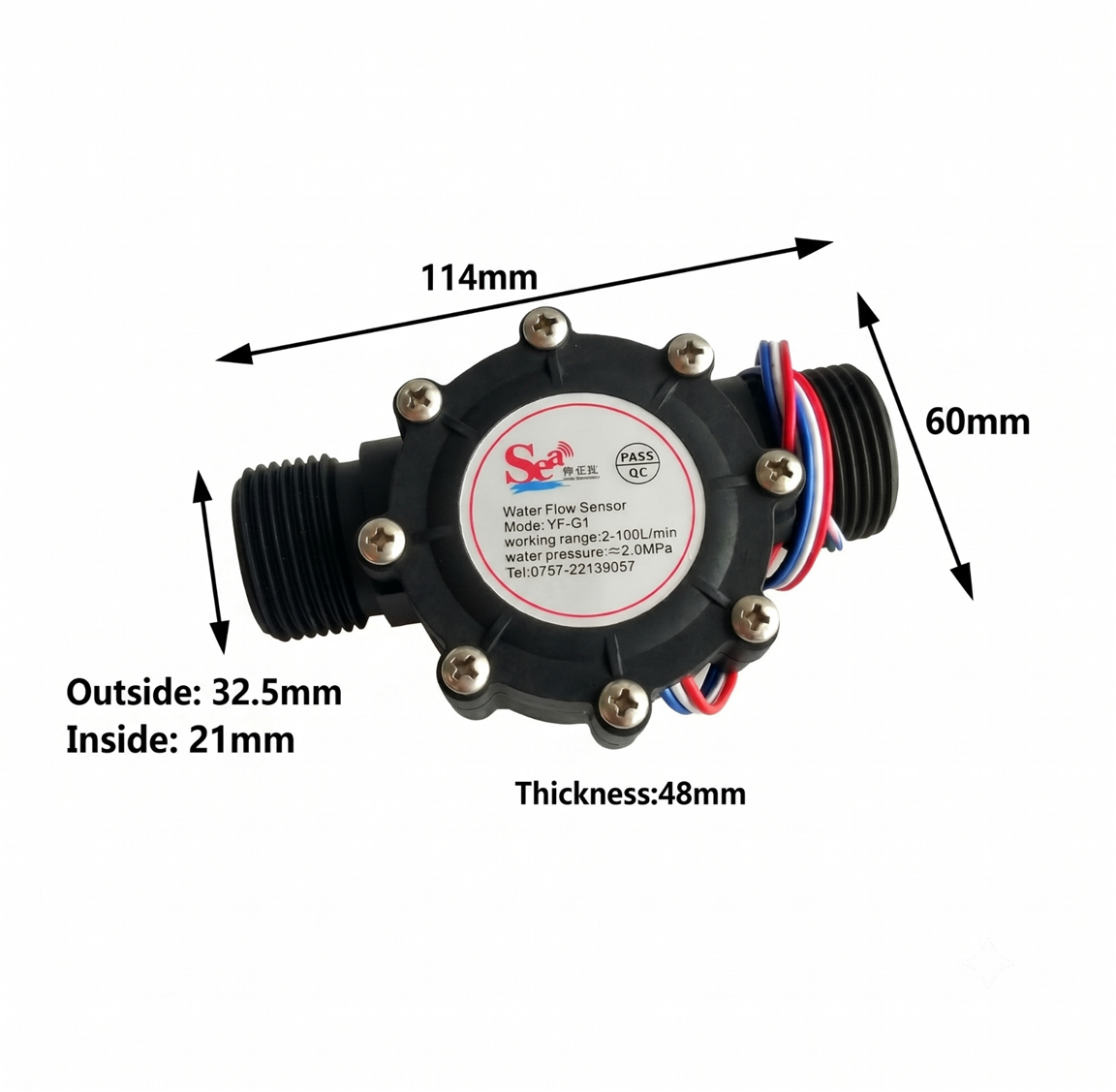

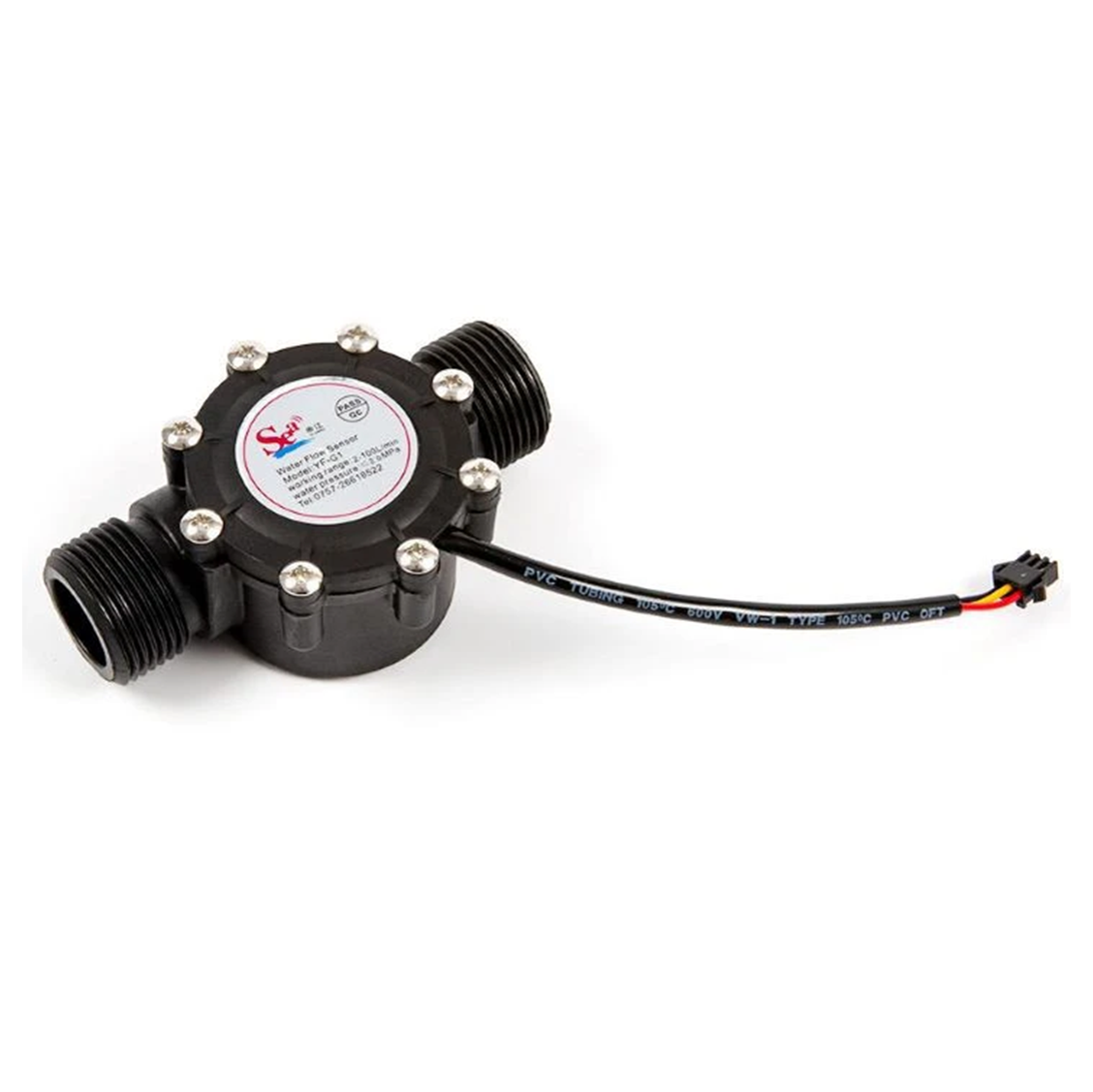

1 inch Water Flow Sensor - YF-G1 DN25

Type: Liquid Flow Sensor | Interface Size: G1-inch male thread

₹ 000.00

* Contact us for bulk pricing.

Key Features

Compact Design Compact structure that is highly reliable and easy to install.

Reliable Seal High sealing performance designed to prevent leaks.

Precision Sensing Equipped with a high-quality Hall effect sensor.

Safe & Compliant Lightweight, easy to install.

Specifications

Model

YF-G1

Thread / Interface Size

G1-inch Male Thread

Material

Nylon / Plastic

Flow Rate Range

2 to 100 L/min

Working Voltage

DC 5V~24V (Min 4.5V)

Pulses per Liter

~288 pulses/L

Max Water Pressure

≤ 1.75 MPa to 2.0 MPa

Operating Temp

-20°C to 85°C

Pulse Characteristic

f = (4.8 * Q) where Q = L/Min

Accuracy

±3%

Insulation Resistance

> 100MΩ

Wiring / Pinout

Red: DC Power
Black: Ground (GND)
Yellow: Pulse Signal
