Water Quality Sensor In Stock

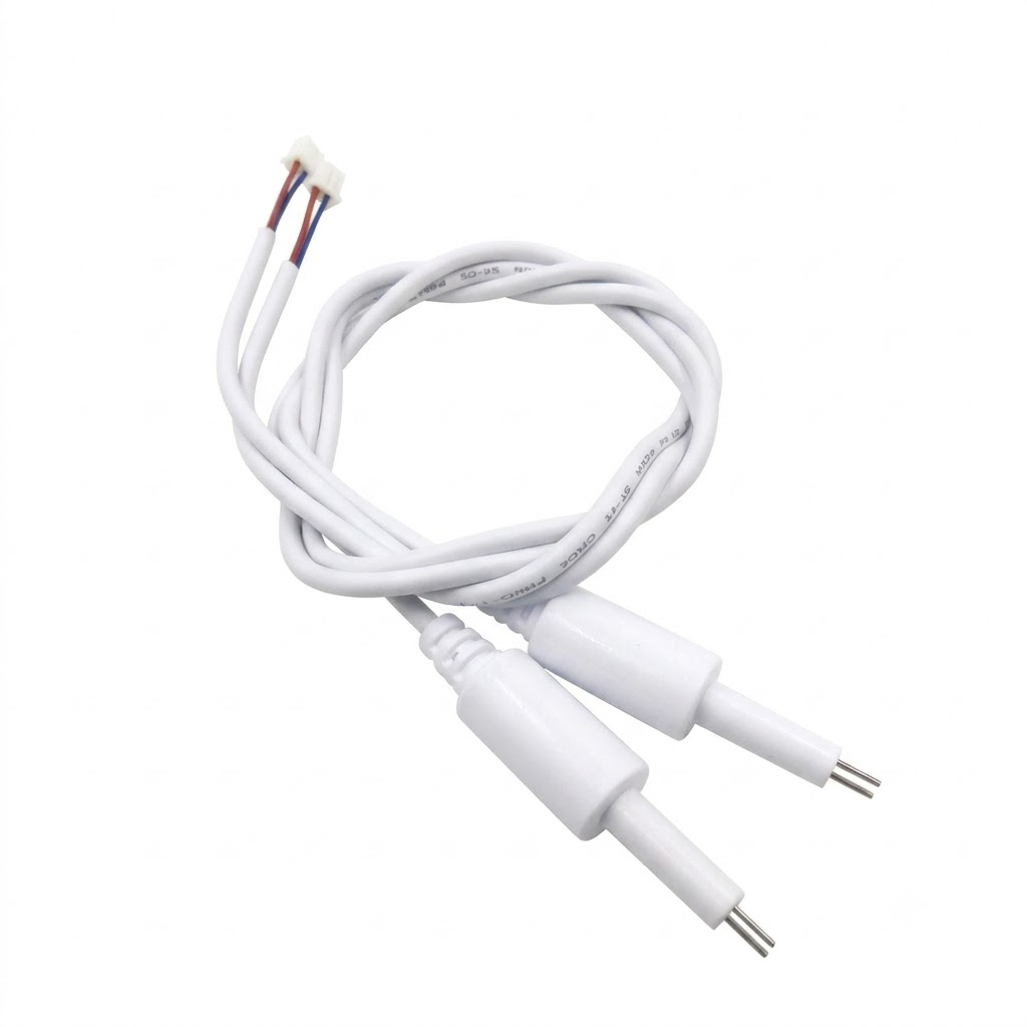

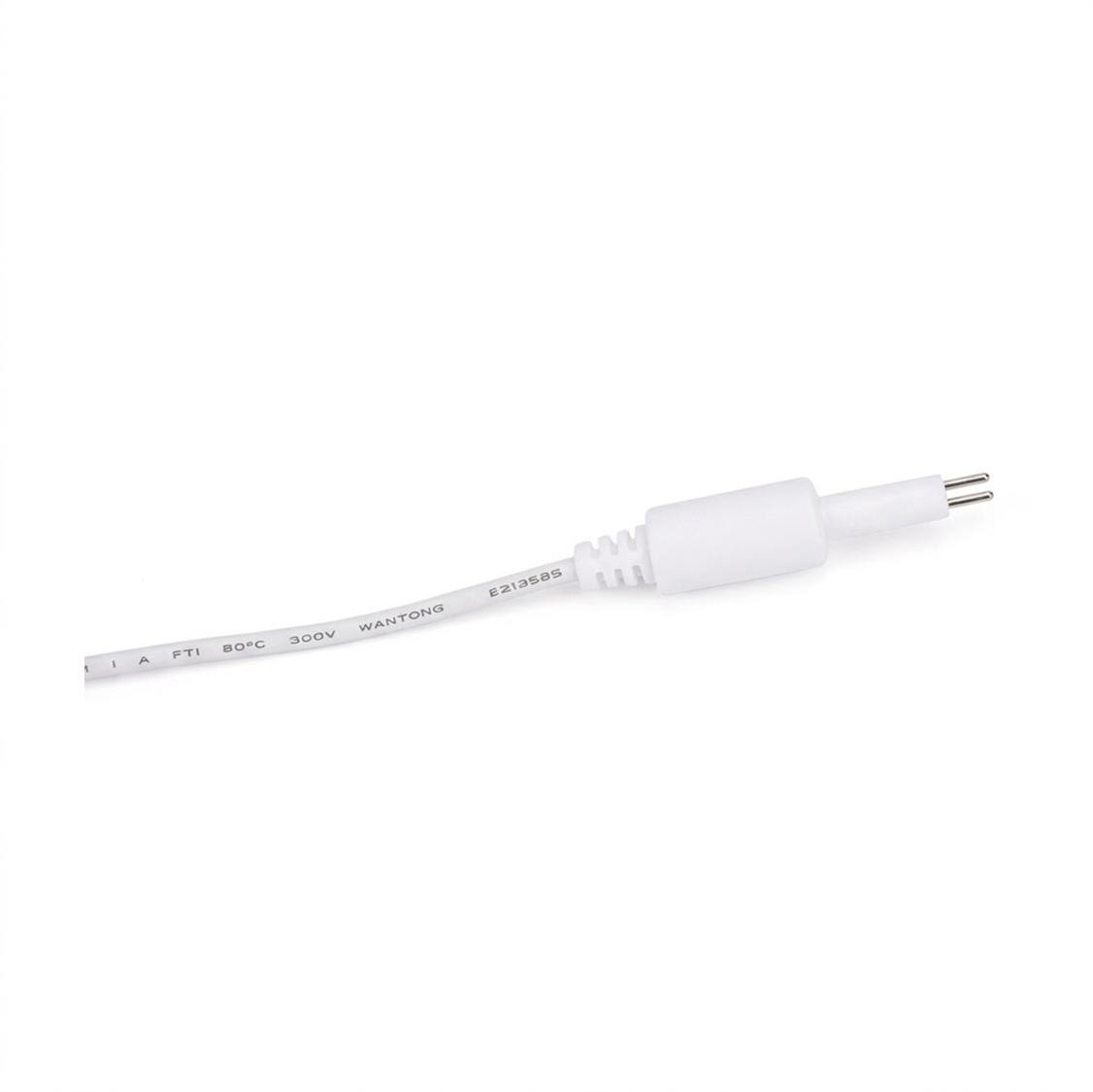

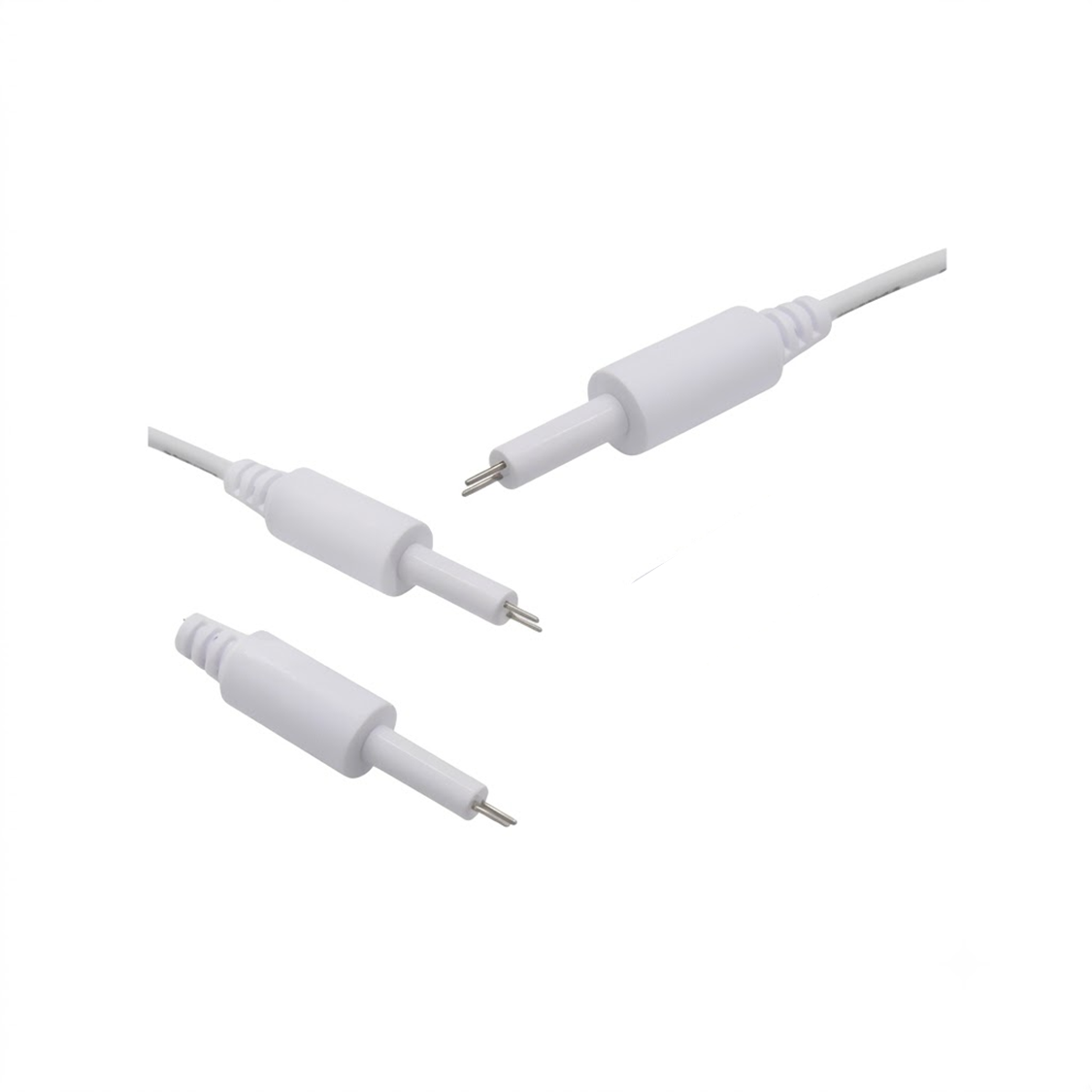

TDS Probe (0.6m)

Type: TDS Probe | Fits standard: 1/4" RO tube

₹ 000.00

* Contact us for bulk pricing.

Key Features

High Accuracy ±2% precision from 0 to 3000 PPM for reliable water quality testing.

Durable & Waterproof Wear-resistant ABS body designed for continuous water immersion.

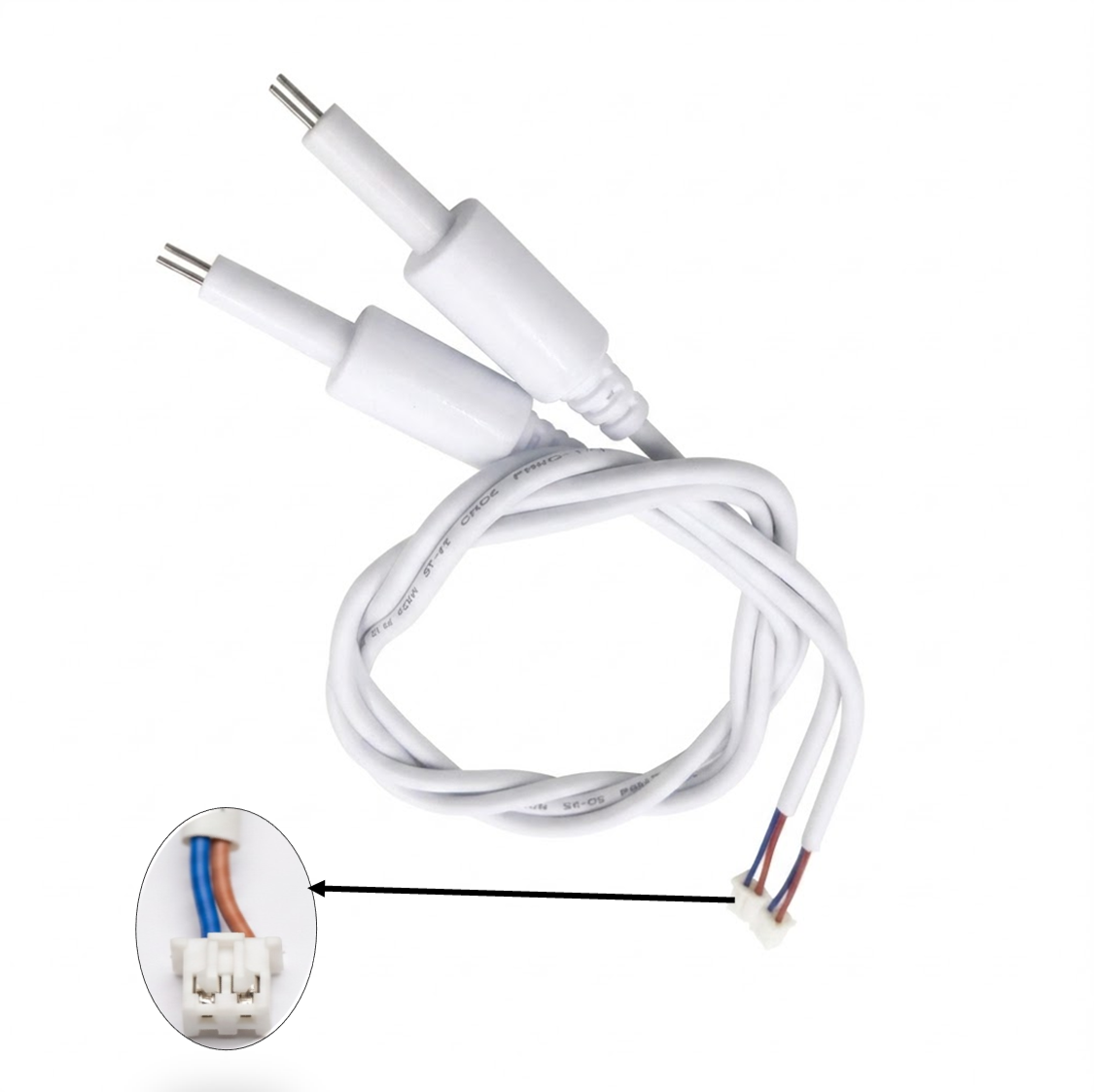

Plug & Play 1/4" quick-connect fitting and a standard 2-pin JST connector for easy integration.

Long Lifespan Ultra-low current draw (≤ 5 µA) prevents electrolysis and protects electrodes.

Specifications

Model

TDS Probe

Measurement Range

0 – 3000 PPM

Measurement Accuracy

± 2%

Operating Voltage

3.3V to 5.5V DC (Recommended < 5V)

Output Voltage

0 to 2.3V analog

Recommended Working Current

≤ 5 µA

Operating Water Pressure

0.1 to 0.4 MPa (approx. 14.5 to 58 PSI)

Operating Temperature

< 70°C

Insulation Resistance

≥ 50 MΩ (dry)

Body Material

ABS / PE (White)

Mounting / Fitting

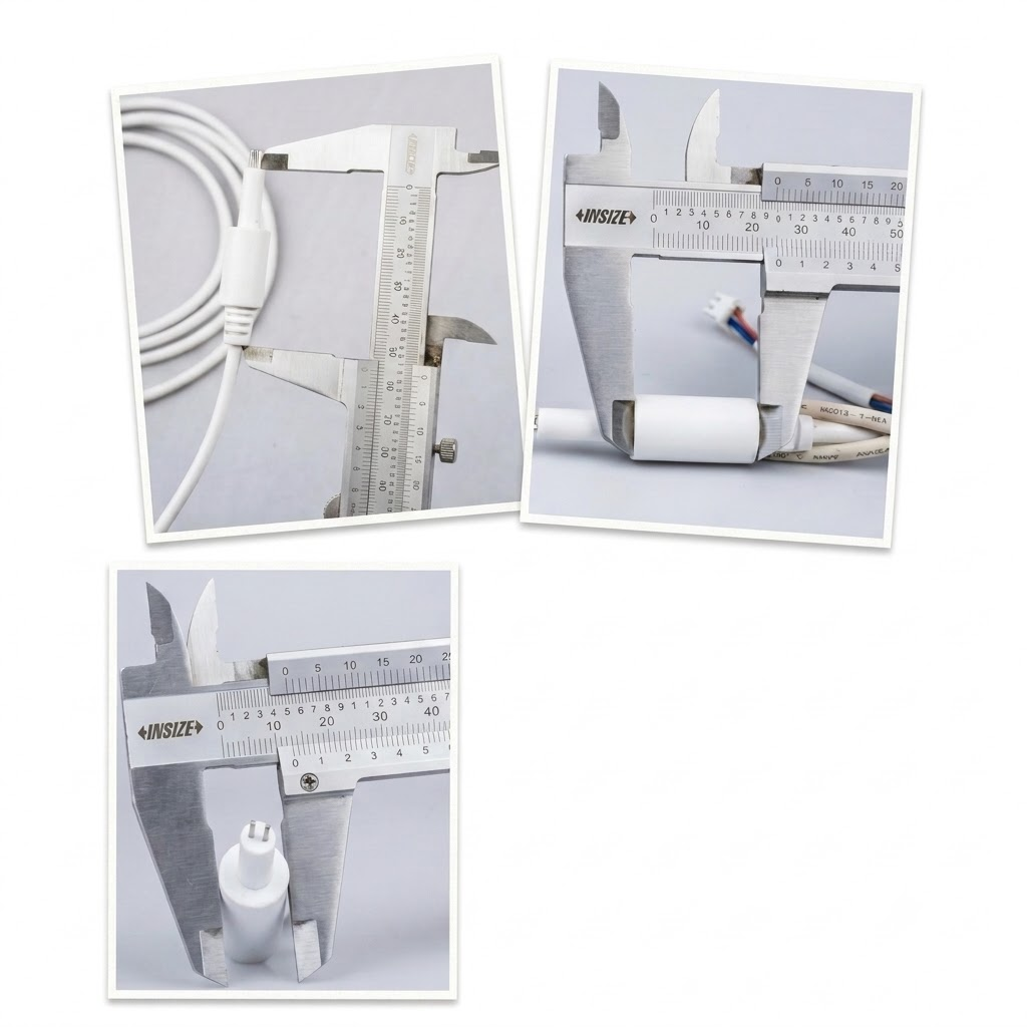

Plug-in 1/4" PE quick-connect (6.35 mm Dia.)

Wire Length & Connector

0.6 Meters (60 cm) | 2-Pin Terminal

Wiring Colors

Blue: Probe Terminal 1
Brown: Probe Terminal 2
(Note: TDS probes are non-polarized)
