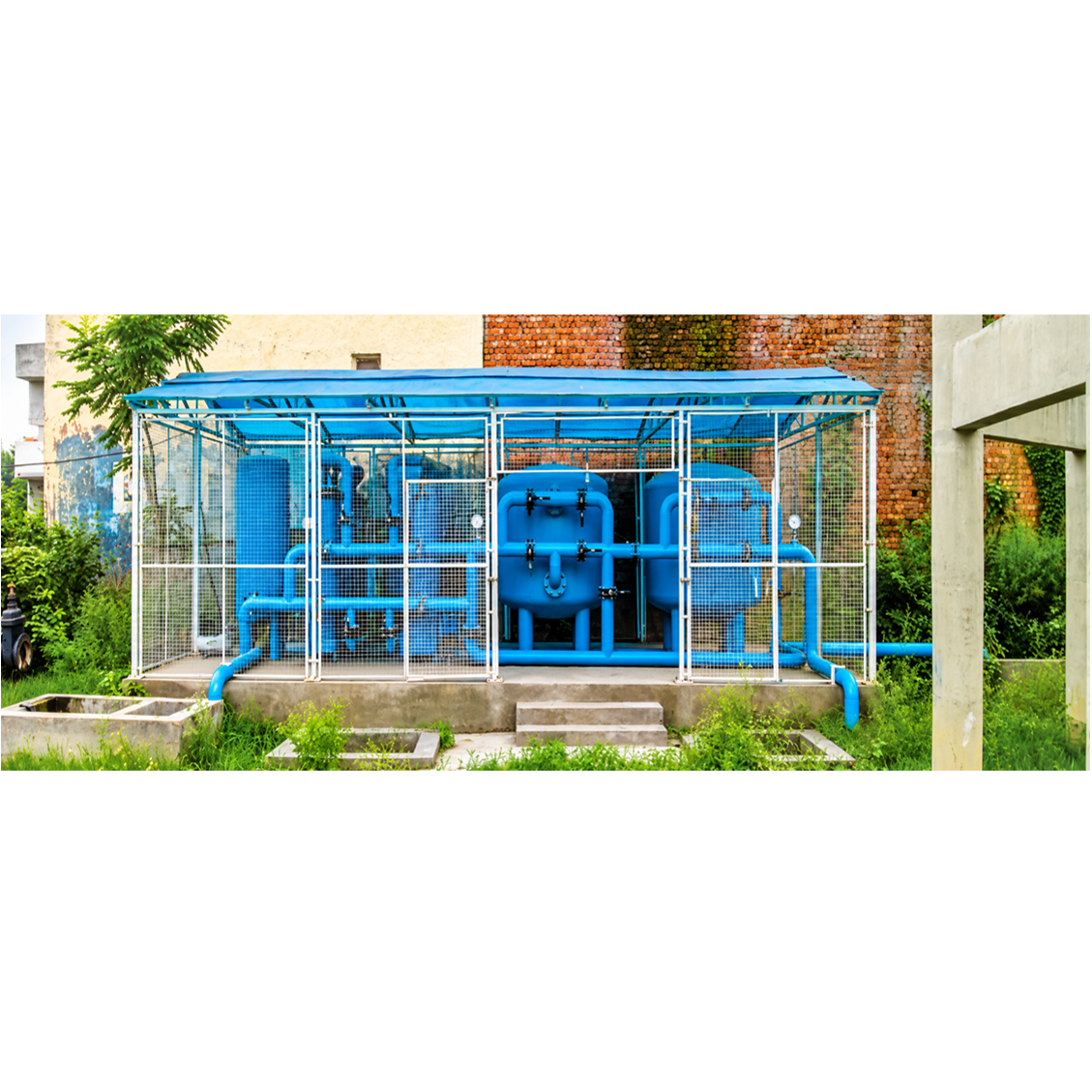

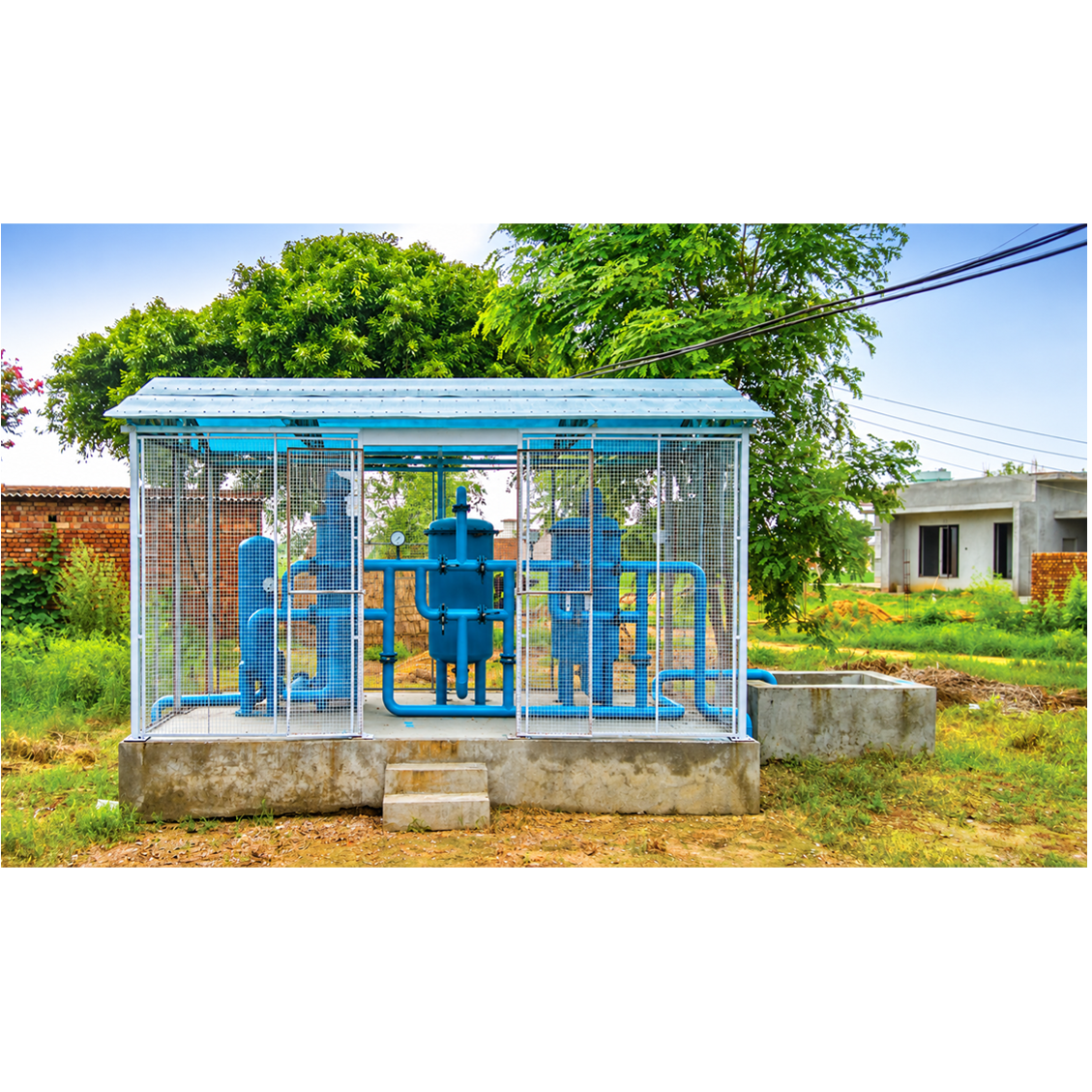

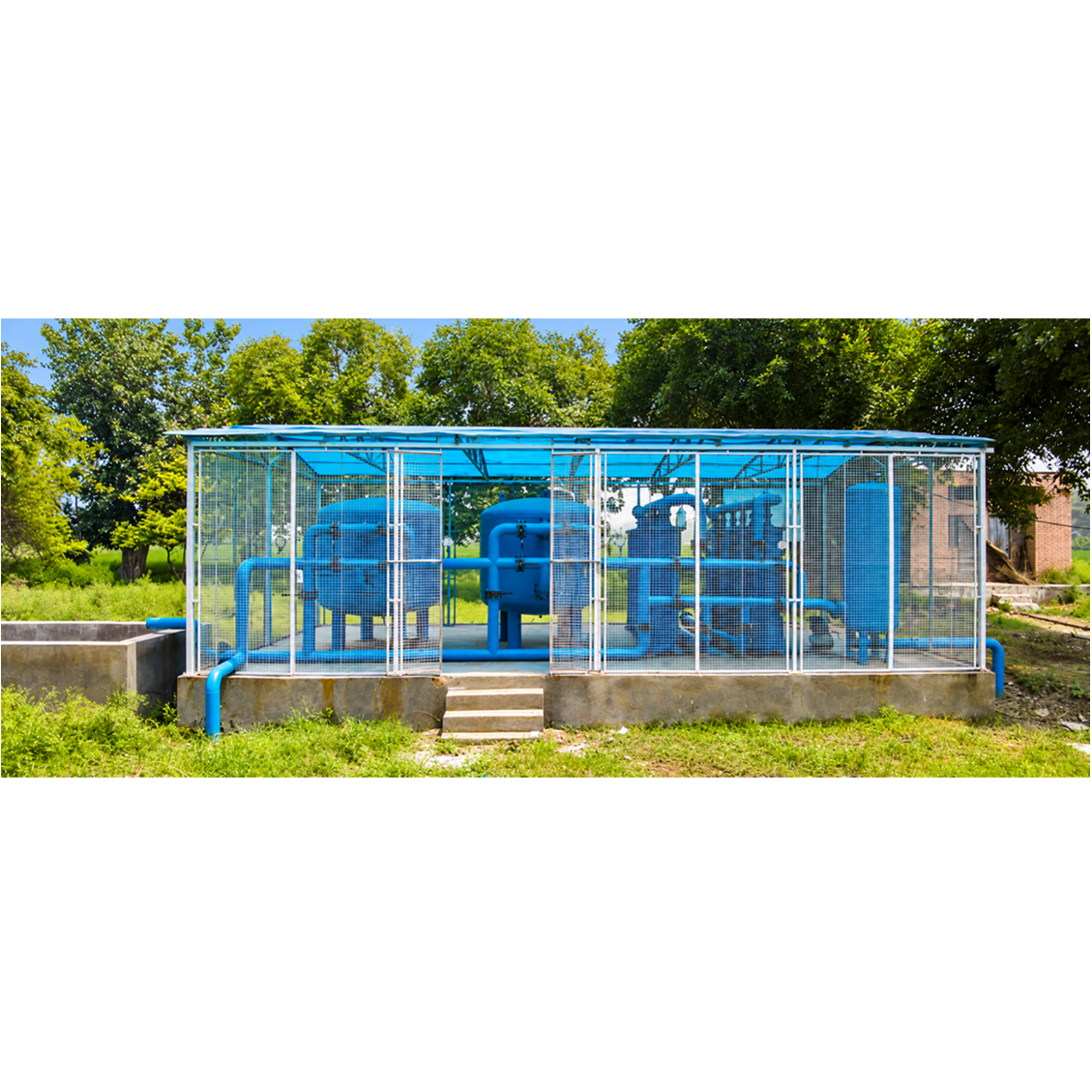

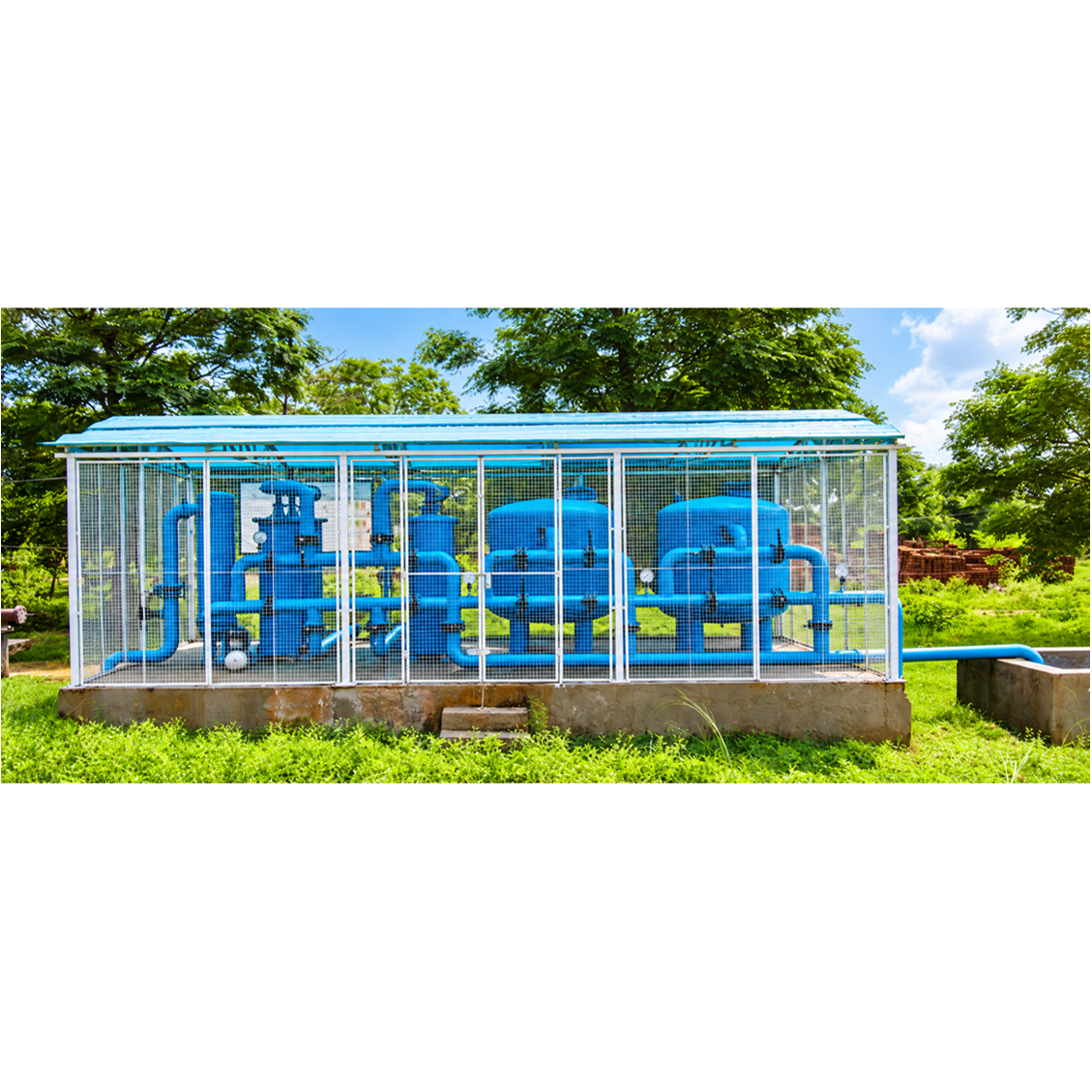

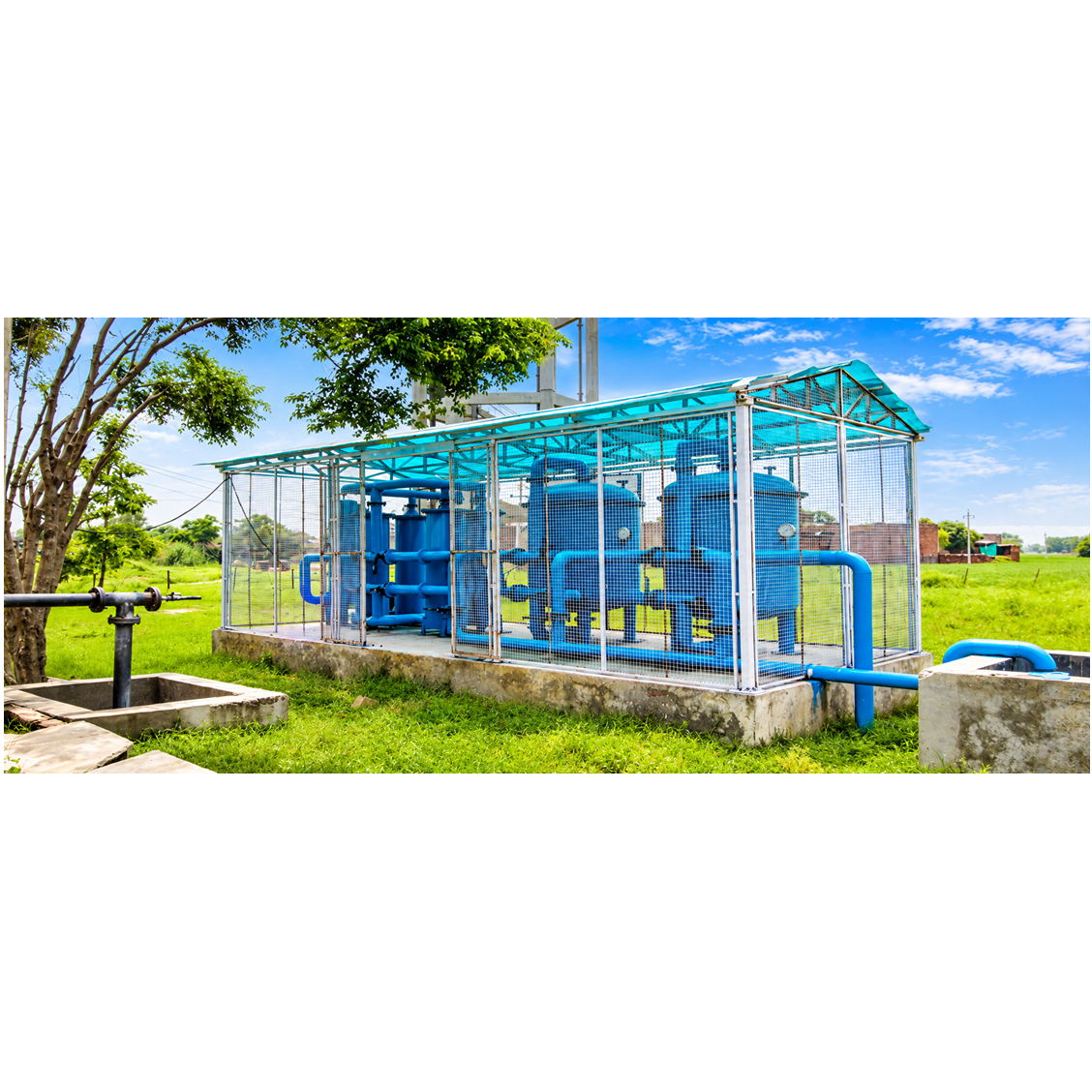

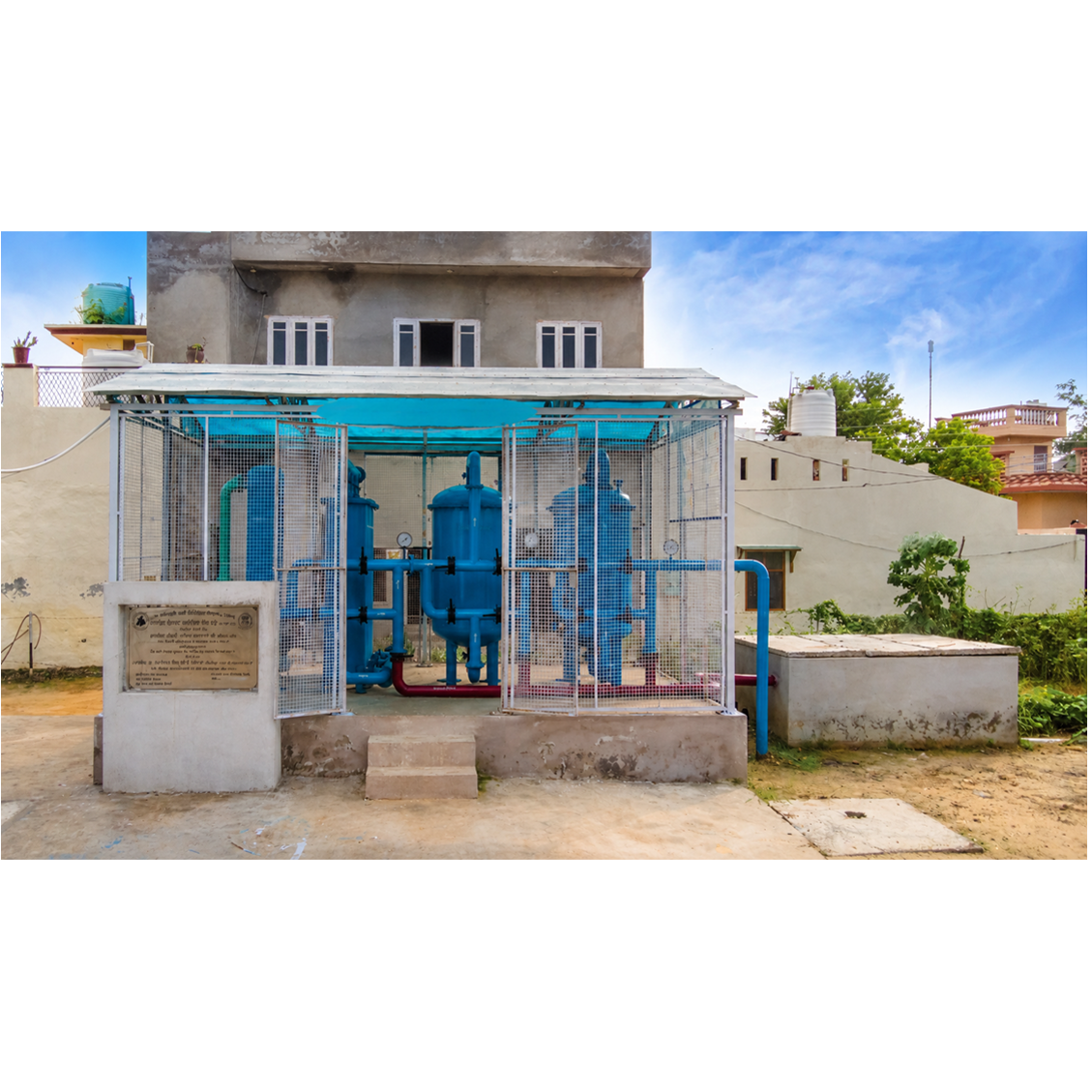

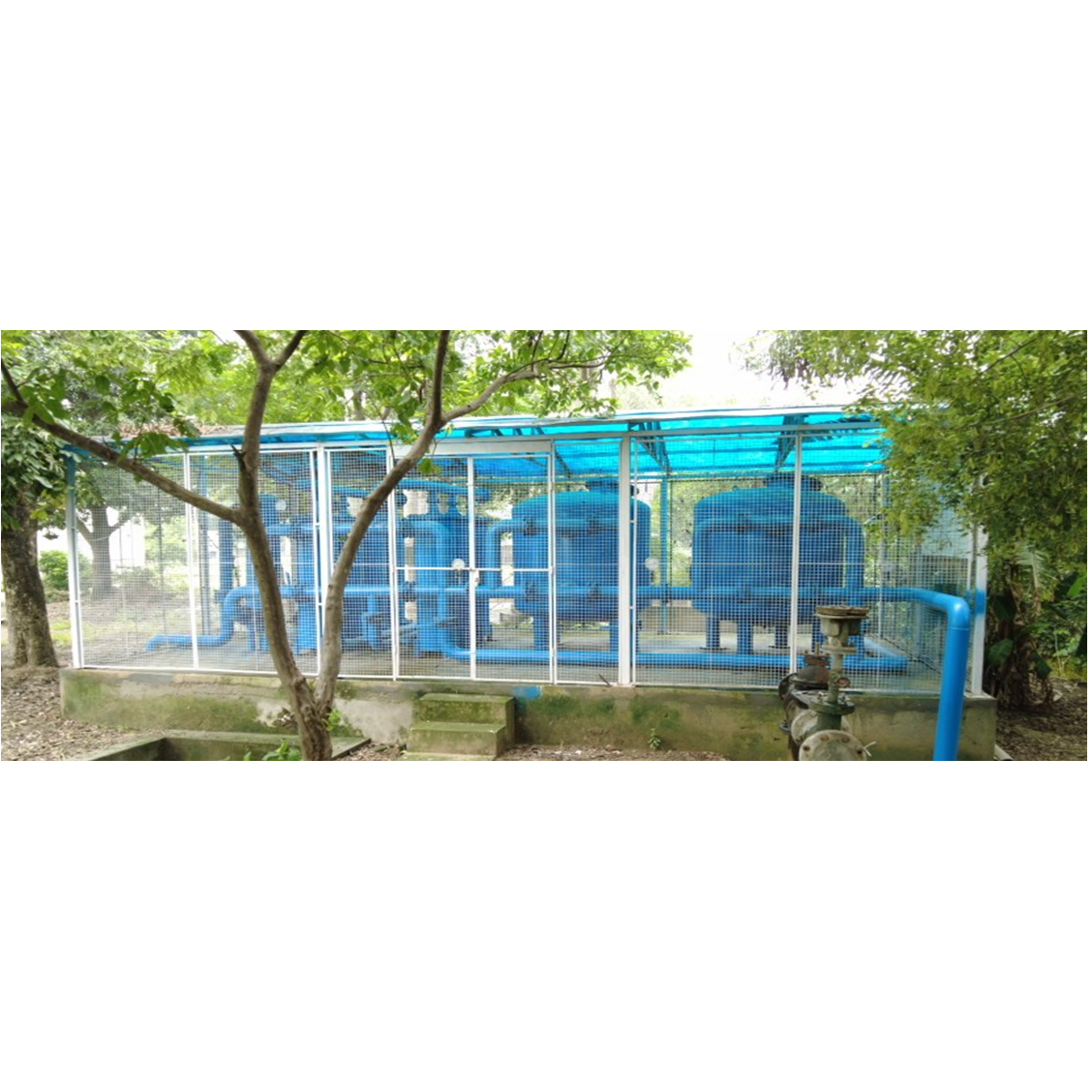

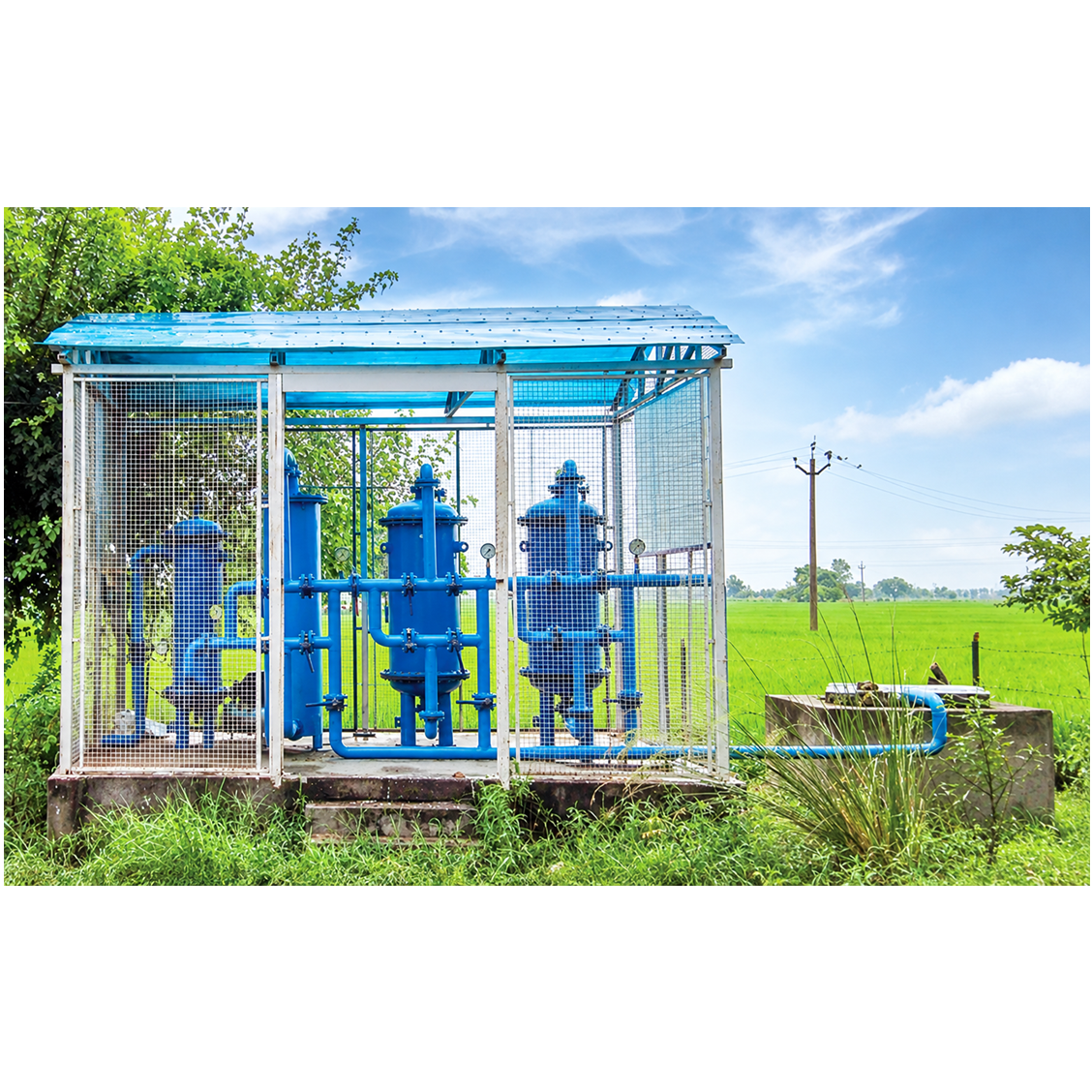

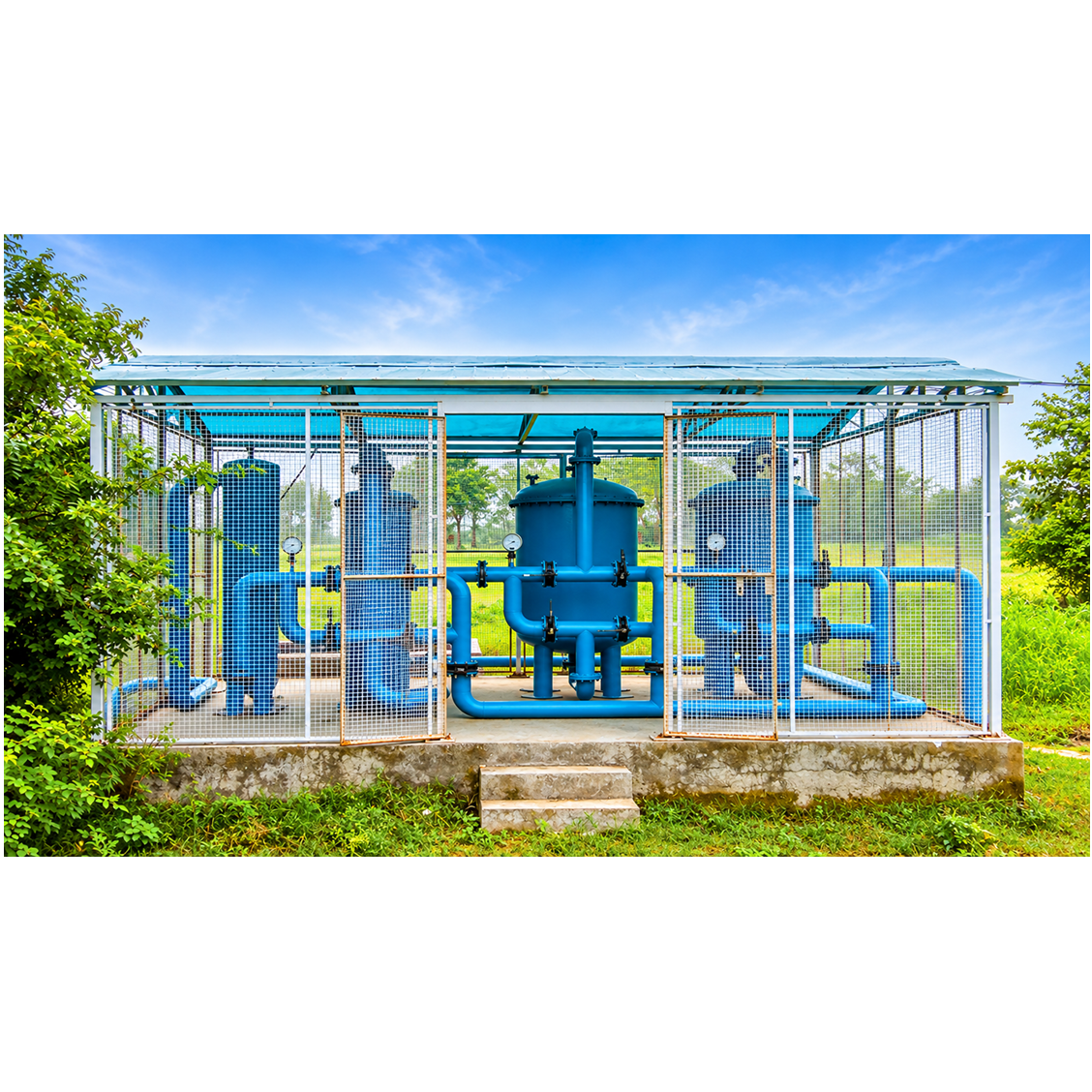

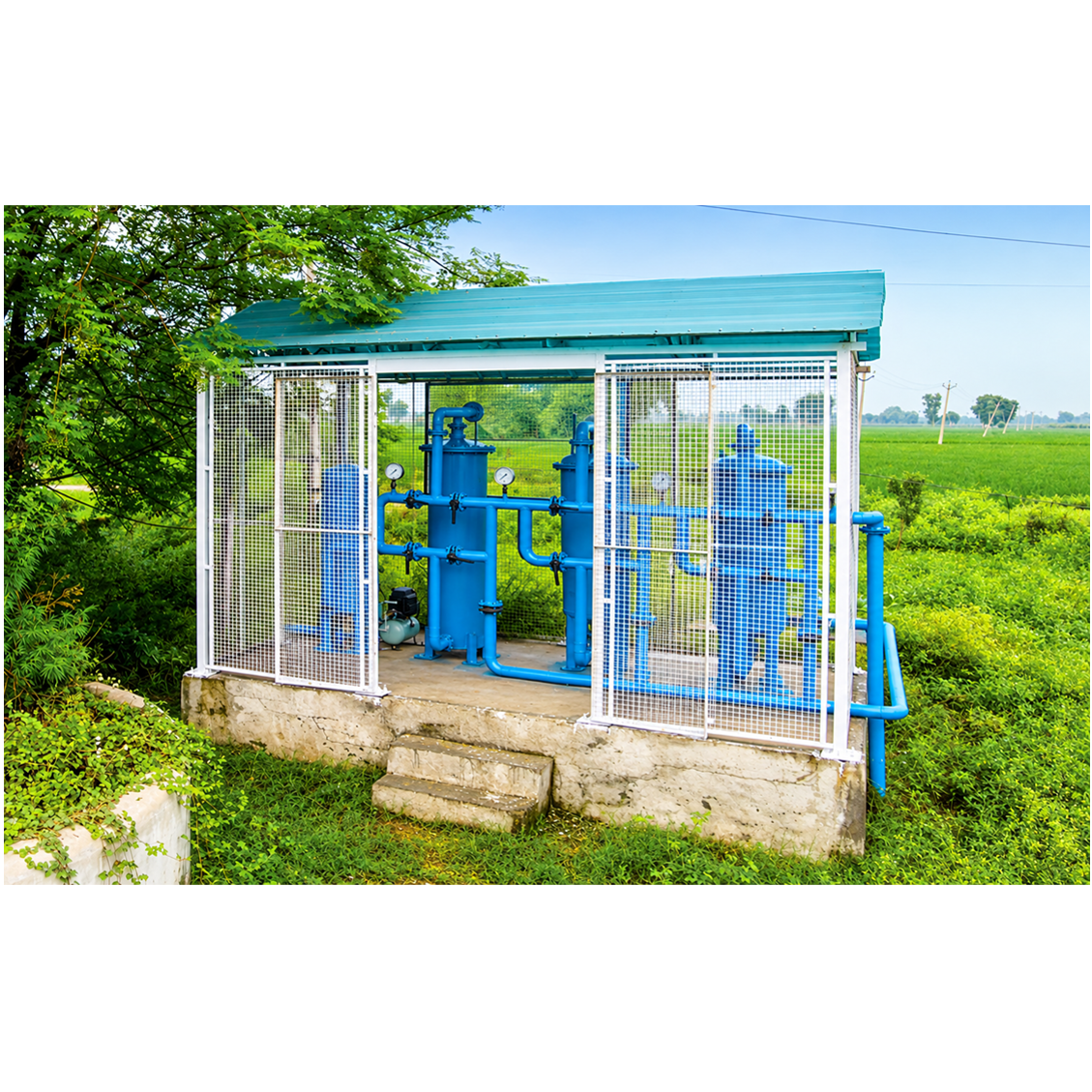

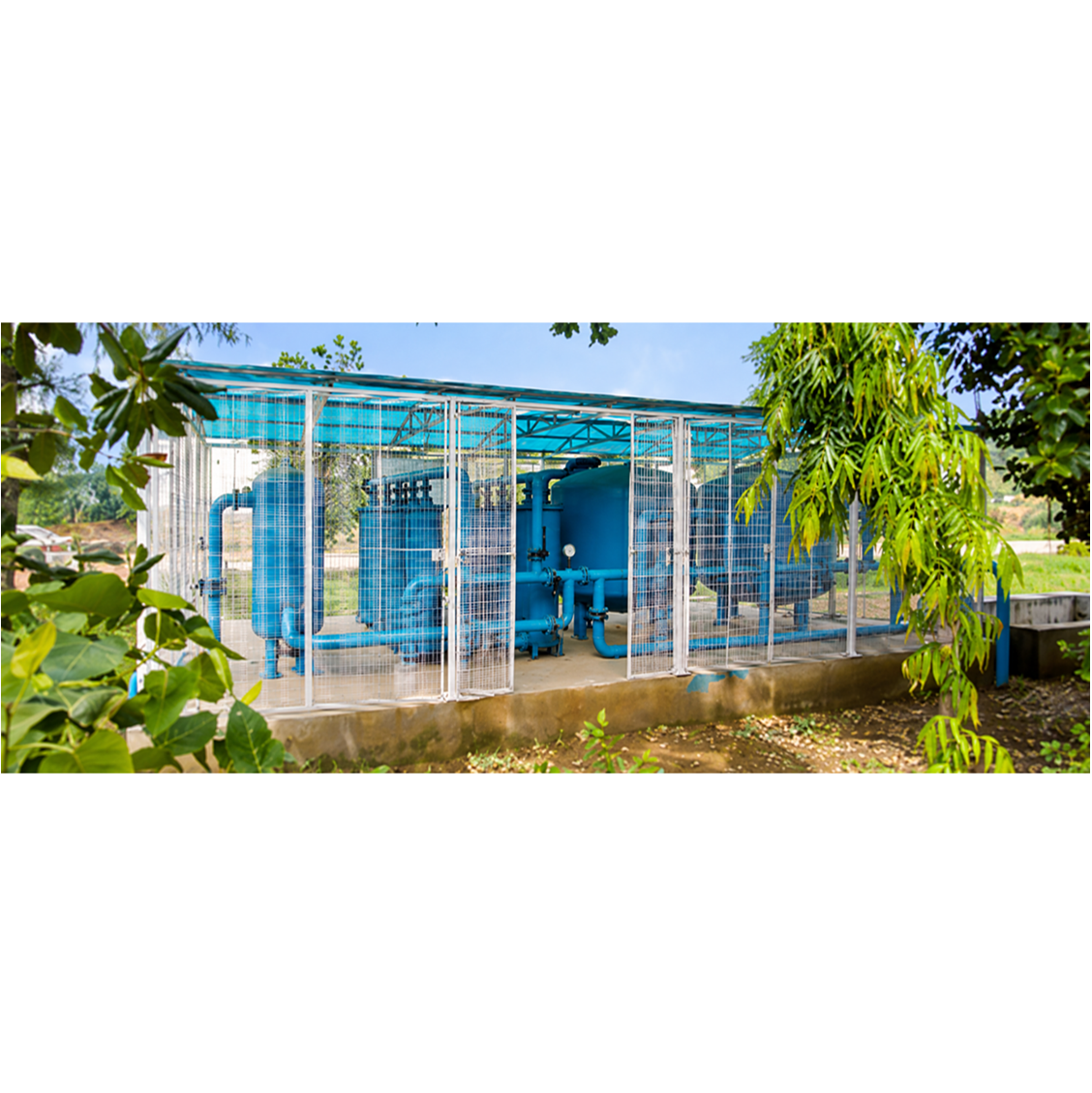

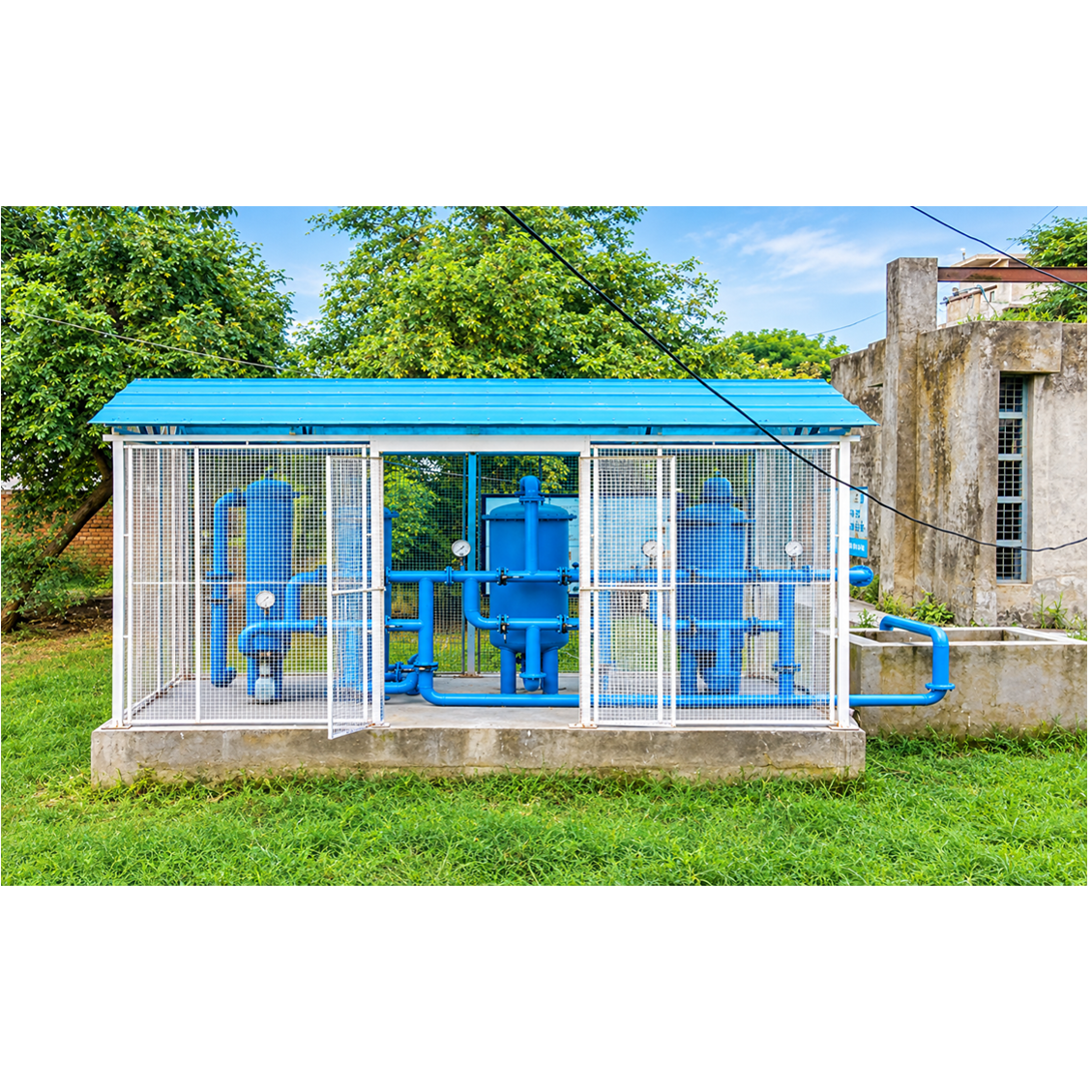

Project Deployment
Arsenic cum Iron Removal Plant (AIRP)
Type: Large-Scale Water Treatment | Capacity: 25 KLD to 1000 KLD (1 MLD)
Consult for Quote
* Scalable solutions from 5 kLD to 1 MLD. Engineering design tailored per source.
Key Features & Process
Chlorination & Oxidation
Pre and post-chlorination oxidizes dissolved iron into ferric states and prevents biofouling in the filtration unit.
Iron-cum-Turbidity Removal
Depth filtration via 8mm thick mild steel vessels removes suspended colloids with a minimum ~120 second retention time.
Lead & Lag Arsenic Adsorption
Dual pressure vessels feature nanotechnology-based adsorption media designed for a continuous 3-year operation lifespan.
Zero Liquid Discharge Focus
Dedicated Backwash Water Treatment unit filters sludge via a multimedia gravity bed, enabling clear water re-use for gardening.
Robust Architecture
Flanged inlet/outlet piping and welded top/bottom domes ensure structural integrity under continuous municipal loads.
Integrated Pipeline Infrastructure
Seamless routing from Pump House to Sluice Valve Chamber, processed through the AIRP, and stored safely in the OHSR.
